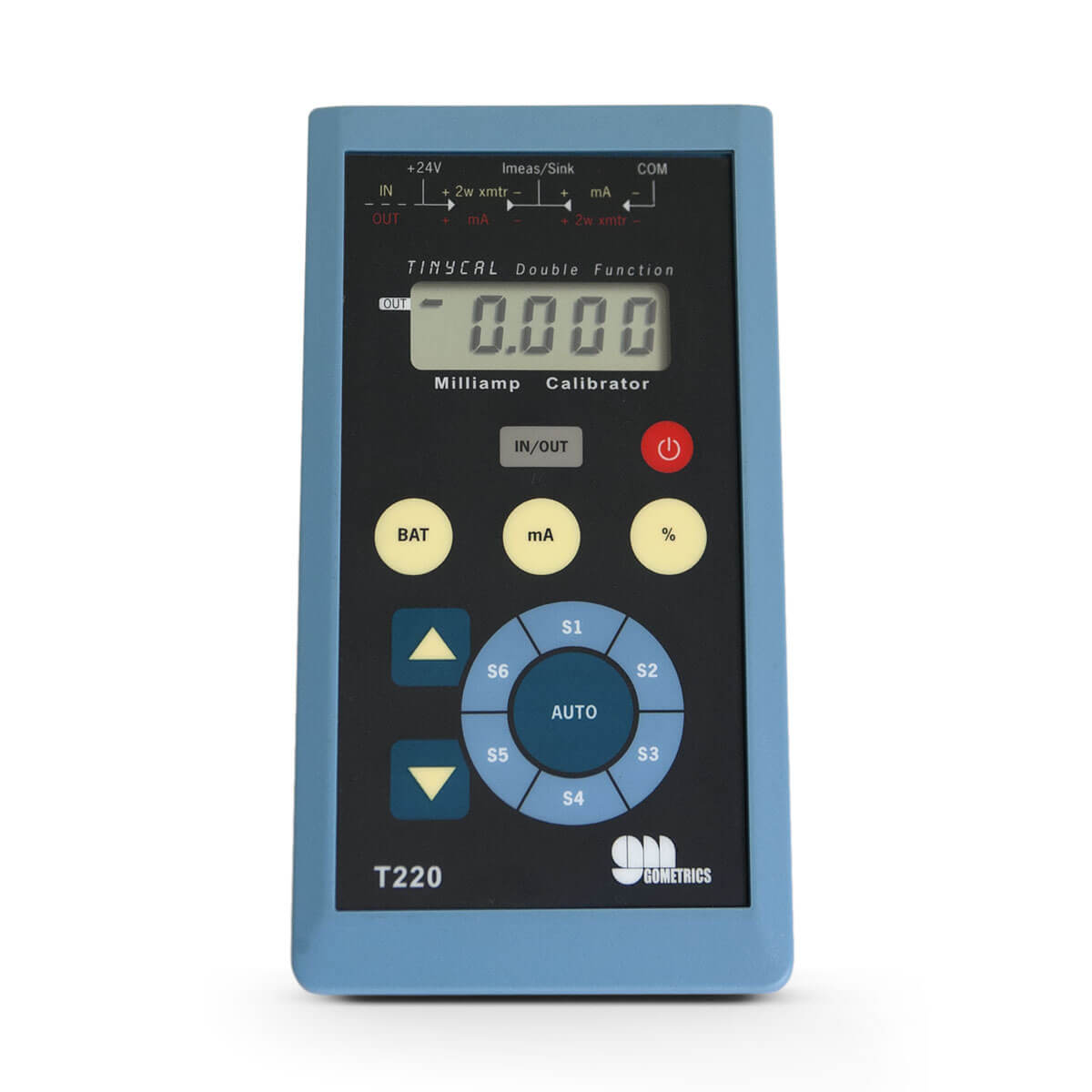

The Tinycal series instruments have a dual function: generation/simulation and measurement. The keys on the front panel of the instrument allow configuration for the generation of set values in engineering units or percentages. The panel keys also allow generation in steps that can be timed from 1 to 9 seconds per step, which is stored thanks to its 6 configuration keys.

The measurement function can be easily selected with the IN/OUT key, as clearly indicated on the display, which indicates the value to be measured. To avoid possible connection or manipulation errors, the measuring circuit is protected against short circuits and external voltages up to 30 V, ensuring a longer instrument lifetime. The T220 and T225 models of the Tinycal family are equipped with an integrated 24 V DC power supply that allows the loop to be powered from the calibrator (active mode), or voluntarily in passive mode.

All instruments in the Tinycal family offer high accuracy and high resolution measurements which, together with their ease of use, high reliability and convenient transportation, as well as their low weight and small size, make them basic standards in an instrumentation workshop.
