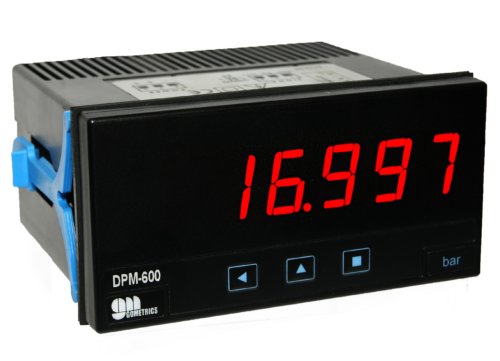

The DPM600 series of digital pressure gauges is the technical evolution of the DPM500 series. It brings together a range of panel instruments for measuring relative, absolute, differential or vacuum pressure, depending on the type of sensor to which it is connected. The display indication is configured from the keypad itself, allowing easy configuration of alarms. Logging of readings at maximum or minimum is available (peak & valley).

The DPM600 incorporates a high precision stainless steel strain gauge pressure transducer for ranges over 1 bar. The units of measurement are configurable from the same instrument, as well as the functions of autozero, tare, password and active or passive power supply.

The DPM600 supports internal or remote pressure sensing, so the instrument can be adapted to any application.

Other available options include analog output in current or voltage, ModBus digital communication, RS485 output, quick access menu, display filter or different brightness levels, among others.

Although the instrument measures pressure very stably, annual recalibration is recommended. If adjustment is required, you can refer to Gometrics or purchase the KT – 60 configuration kit supplied separately. The kit contains a CL-60 reference cable and a CD-60 software CD-60 equipped with the appropriate driver to run the adjustment from a PC.
