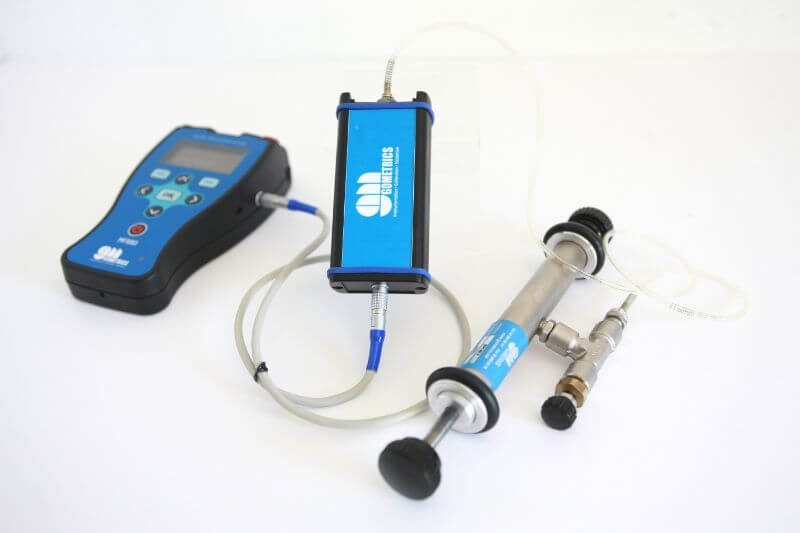

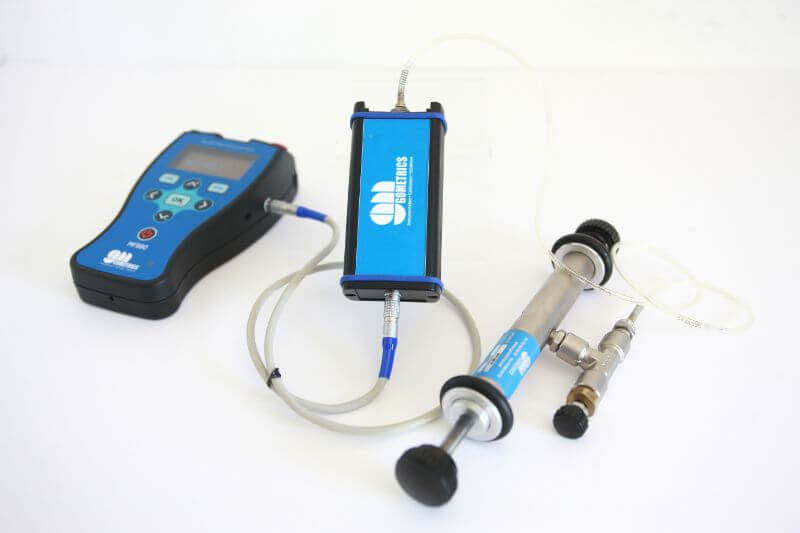

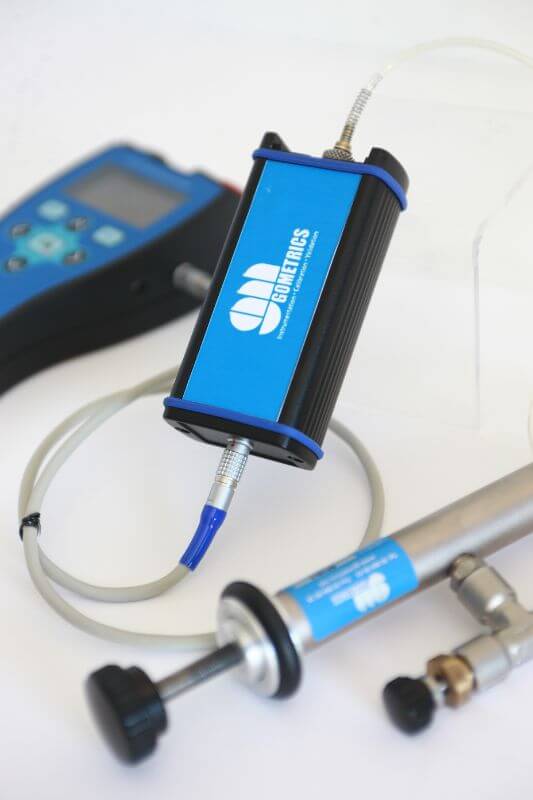

External pressure module MF680

616,00

Process instrument calibrator designed for field technicians and industrial maintenance professionals. Its multifunctional capacity translates into great versatility when calibrating different instruments.

An ideal instrument for field adjustments or calibrations of process instruments

The MF680 multifunction process calibrator manufactured by Gometrics is an instrument that combines technology, robustness and ease of use. Ideal for field adjustments or calibrations of a wide variety of process instruments, an ideal compromise between performance, dimensions, ease of use and cost.

The MF680 calibrator is a microprocessor-based digital pressure gauge. The instrument is equipped internally with a strain gauge sensor in stainless steel for ranges above 1 bar.

The new MF680 can also measure or generate current simultaneously. The indication of both variables on the display saves time, while the possibility to work in percentage values for input and output signals reduces the risk of error in the calibration of pressure transmitters.

Download Pressure range table

Categories: ,

Characteristics​​

  • Double reading: pressure and current on the same display,
  • Active or passive indication (with or without 24 Vdc source) configurable from the calibrator itself,
  • Datalogger for data recording and storage.

Advantages

  • Versatile and easy to handle
  • Economical
  • Integrated coefficients
  • Intuitive, multi-language menu for easy access to pressure measurement, metering or current and voltage generation functions.

Applications

  • Calibration of pressure measurement instruments and electrical signals.
  • Multifunctional capability to calibrate different instruments: digital gauges, pressure gauges, contact-type pressure alarms and pressure or electrical transmitters.

Technical specifications

Uncertainty pressure 0,25% FS – 0,10% FS – 0,05% FS
Pressure: Internal sensor range Min. 0-25 mbar – Max. 0-350 bar
Pressure: External sensor range Min. 0-25 mbar – Max. 0-1000 bar
Resolution Graphical display
Process fitting 1/8 “BSP M internal tapered 60º.
Leak test Yes
Contact test Yes
Barometric sensor Optional
Certification Calibration certificate ENAC
Uncertainty electrical signals 0,025% FS
Electrical signals range reading range mA 0 – 55 mA with external FA
Electrical signals range reading range mV 0 – 200 mV
Electrical signals reading range V 0 – 50 VDC
F. A. 24 Vcc internal Yes
Simultaneous reading Yes
Error indication % Yes
Generation mA 0 – 25 mA
Generation mV 0 – 200 mV
Tension generation 0 – 10 VDC
After-sales service Yes
Size Length: 185 mm – Width: 97 mm – Height: 52 mm
Weight 500 g
Batteries Rechargeable NiMH
Autonomy (typical) 12 horas
Charger Yes
CE Marking Yes
Warranty 3 years
