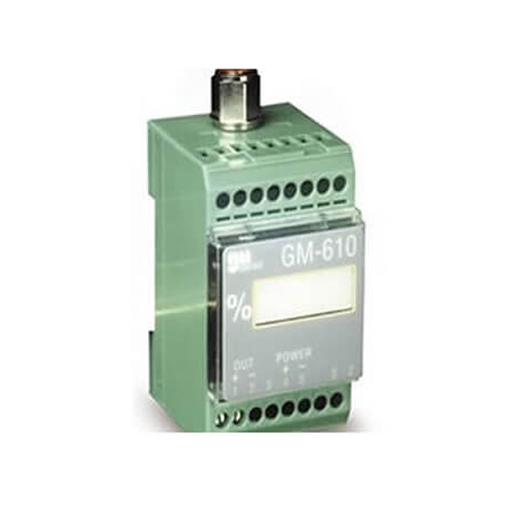

P/I GM610 Converter

P/I GM610 Converter

411,00€

The GM-610 converter receives a pressure signal and converts it to a 4-20 mA current signal. No air is consumed, the maximum pressure being two times the lowest value on the specified scale.

The GM-610 receives a pressure signal and converts it to a 4-20 mA current signal.

The piezoresistive sensor is not insulated from the diaphragm. The fluid must therefore be air or inert gases. The diaphragm is made of silicon.

No air is consumed, the maximum pressure being two times the lowest value on the specified scale.

Can optionally be supplied with “GM-610F” 4 wire transmitter, with a 24 Vcc feed (insulated), and output 4-20 mA (maximum load 1000 Ohm).

Buy Now

Category:

Characteristics​​

  • Power supply: 24 Vdc
  • Mounting: DINS rail

Advantages

  • Relative pressure, vacuum and absolute pressure models available

Applications

  • Converts a pressure input signal to a current output signal (4-20mA) for DIN Rail mounting

Technical specifications

Models and ranges available
  • 3-15 psig / 4-20 mA
  • 0,2-1.0 bar / 4-20 mA
  • 0,2-1.0 kg/cm2 / 4-20 mA
  • 3-27 psig / 4-20 mA
  • 6-30 psig / 4-20 mA
Accuracy 0.25% F.S.
Maximum input pressure 2x maximum interval value
Power supply 24 V DC, operational from 14 to 40 V DC, varying the maximum impedance of the circuit
Operational temperature 0 to 50ºC
Temperature effect 0.02% of the span/ºC (total effect, variance from zero plus span variance)
Dimensions 95 x 45 x 55 mm (including connector)
