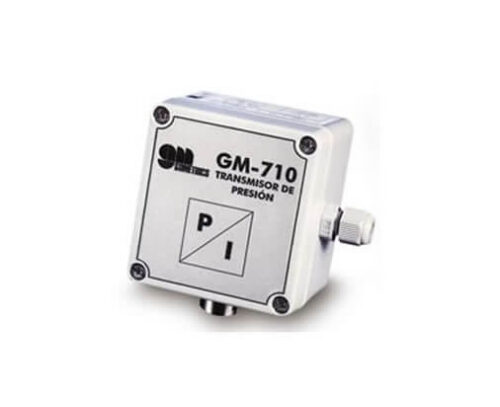

P/I GM710 Converter

P/I GM710 Converter

509,00€

The GM-710 converts a pressure signal into a 4-20 mA current signal. The piezoresistive sensor is insulated from the diaphragm. The fluid must compatible with stainless steel. If <1 bar only use air/inert gases. It has IP65 protection.

The GM-710 receives a pressure signal and converts it to a 4-20 mA current signal.

The piezoresistive sensor is not insulated from the diaphragm. The fluid must therefore be air or inert gases. The diaphragm is made of silicon.

No air is consumed, the maximum pressure being two times the lowest value on the specified scale.

Can optionally be supplied with “GM-710F” 4 wire transmitter, with a 24 Vcc feed (insulated), and output 4-20 mA (maximum load 1000 Ohm).



Pressure range table

Category:

Characteristics​​

  • Output signal: 4-20mA
  • Power supply: 24 Vdc

Advantages

  • Models available in gauge pressure, in vacuum and in absolute pressure

Applications

  • Converts a pressure input signal to a current output signal (4-20 mA) for outdoor mounting

Technical specifications

Ranges available
  • 0-700 mm H2O
  • 0-3500 mm H2O
  • 0-1 bar
  • 0-2 bar
  • 0-7 bar
Accuracy 0.25% F.S.
Maximum input pressure 2x maximum interval value
Power supply 24 V DC, operational from 14 to 40 V DC, varying the maximum impedance of the circuit
Operational temperature 0 to 50ºC
Temperature effect 0.02% of span/ºC
Dimensions 95 x 95 x 55 mm
