Reference temperature monitor RTM1-8
Reference temperature monitor RTM1-8 - Image 2
Reference temperature monitor RTM1-8 - Image 3

Reference temperature monitor RTM1-8

1.883,00€

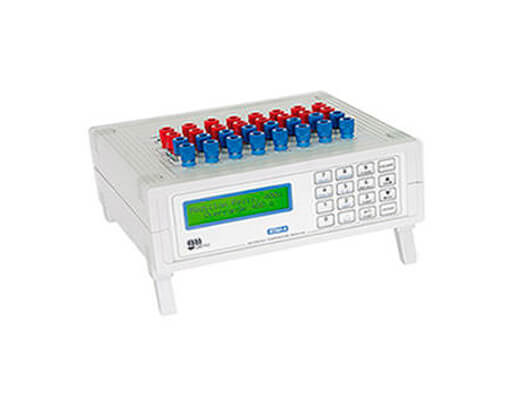

The RTM1-8 reference digital thermometer is a benchtop instrument for temperature indication with a very high level of precision and extremely high stability over time. It reads either 8 x Pt100 or 8 x thermocouples.



The RTM1-8 reference digital thermometer is a benchtop instrument designed and manufactured by Gometrics for temperature indication with a very high level of precision and extremely high stability over time, giving this instrument a degree of reliability only offered by sophisticated laboratory instruments.

The RTM1-8 temperature monitor accepts RTD and thermocouples. It incorporates a 16-bit microprocessor for characterization calculations in resistance-temperature conversion (for RTD) and voltage-temperature conversion (for TC).

The equipment implements in its mathematical algorithms the decaracterization polynomials, making the conversion error Ohms or mV – temperature 10 times less than the resolution of the instrument.

The RTM1-8 incorporates a 24-bit resolution A/D converter, which together with the electronic circuit design achieves high repeatability and measurement reliability.

Download catalogue

Category:

Characteristics​​

  • Very high level of accuracy
  • Extremely high stability over time
  • High repeatability and reliability of measurements

Advantages

  • Calibration of resistance thermometers
  • Calibration of sheath-insulated thermocouples

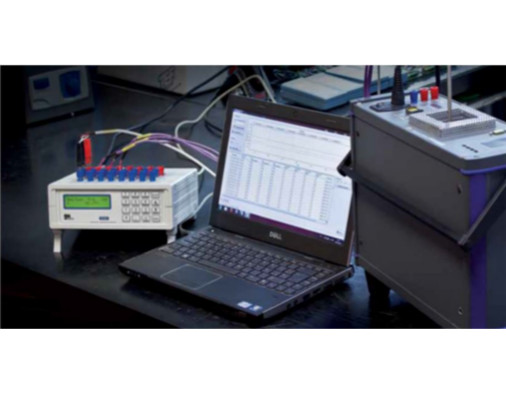

  • PC temperature recording
  • R and mV measurement
  • R&D projects

Applications

  • Up to 8, with independently configurable input type
    1 sec. mV, 2 sec. Resistance
  • Can read DIN 43760 temperature probes according to industry standard IEC-751.

Technical specifications

Display 2 x 20-digit LCD 5.5 mm high, backlit (touch optional)
No. of channels Up to 8, with independently configurable input type
Time to read a measurement 1 sec. mV, 2 sec. Resistance
Input impedance > 10 MOhm (mV, T/C), 1 MOhm V and 5 Ohm (mA)
Power supply 230 Vac ± 10%, 50/60 Hz (optional 110 Vac)
Weight 1.5 kg
Dimensions 200 x 223 x 90 mm
Storage temperature -10 ºC to 60 ºC
Operating temperature 0 ºC to 50 ºC
Ambient humidity 0% to 80% RH non-condensing
Temperature coefficient ± 0.0005% RDG/ºC (only resistance measurement)
